Component Presentation Schema
|
See it in the scaffold: the stackvista/stackpack-templates scaffold has a full, commented |
Overview
This page documents the configuration schema used by the UI Presentation model. It is intended as a reference for authors defining UI presentation behavior.
UI pages populated by ComponentPresentation

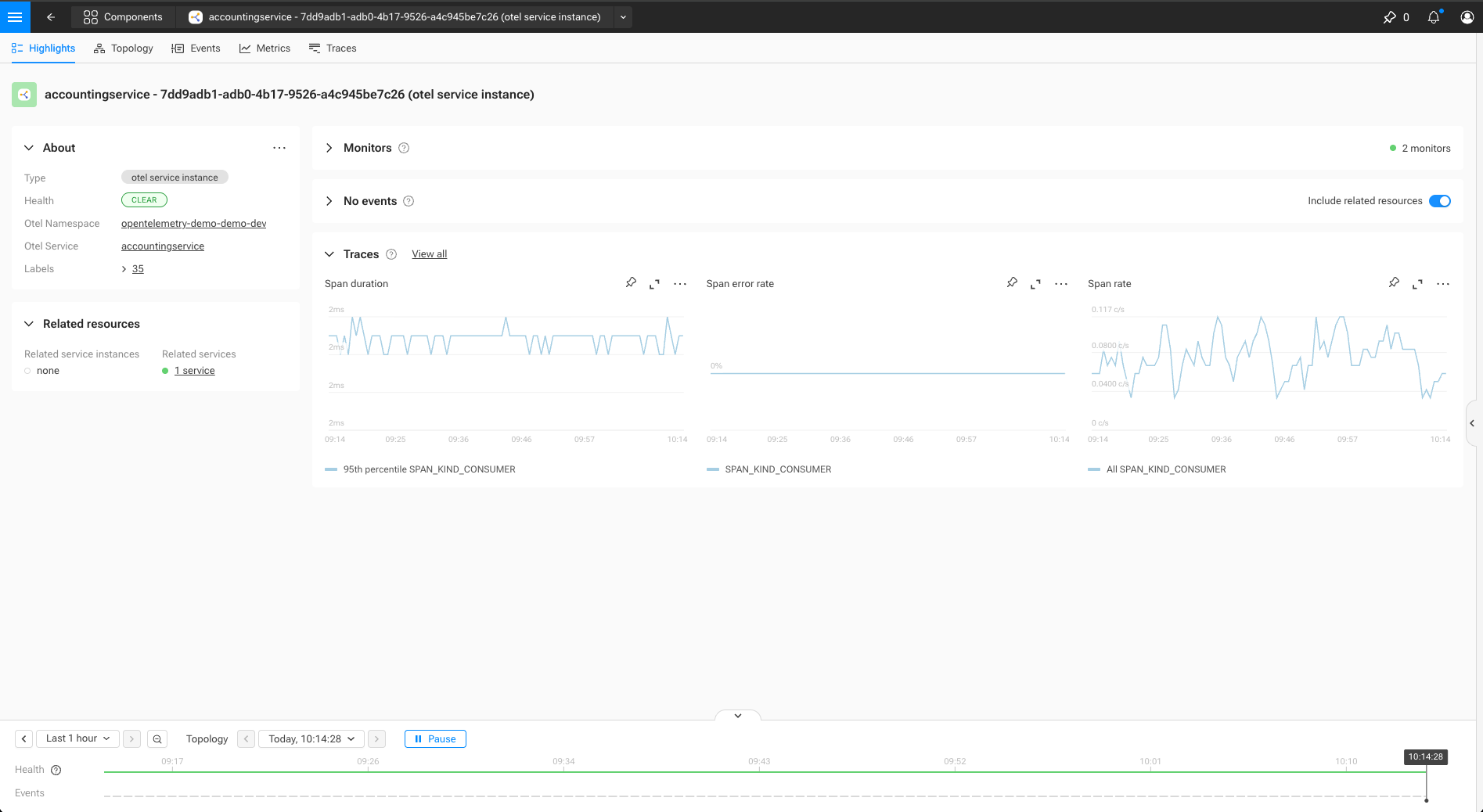

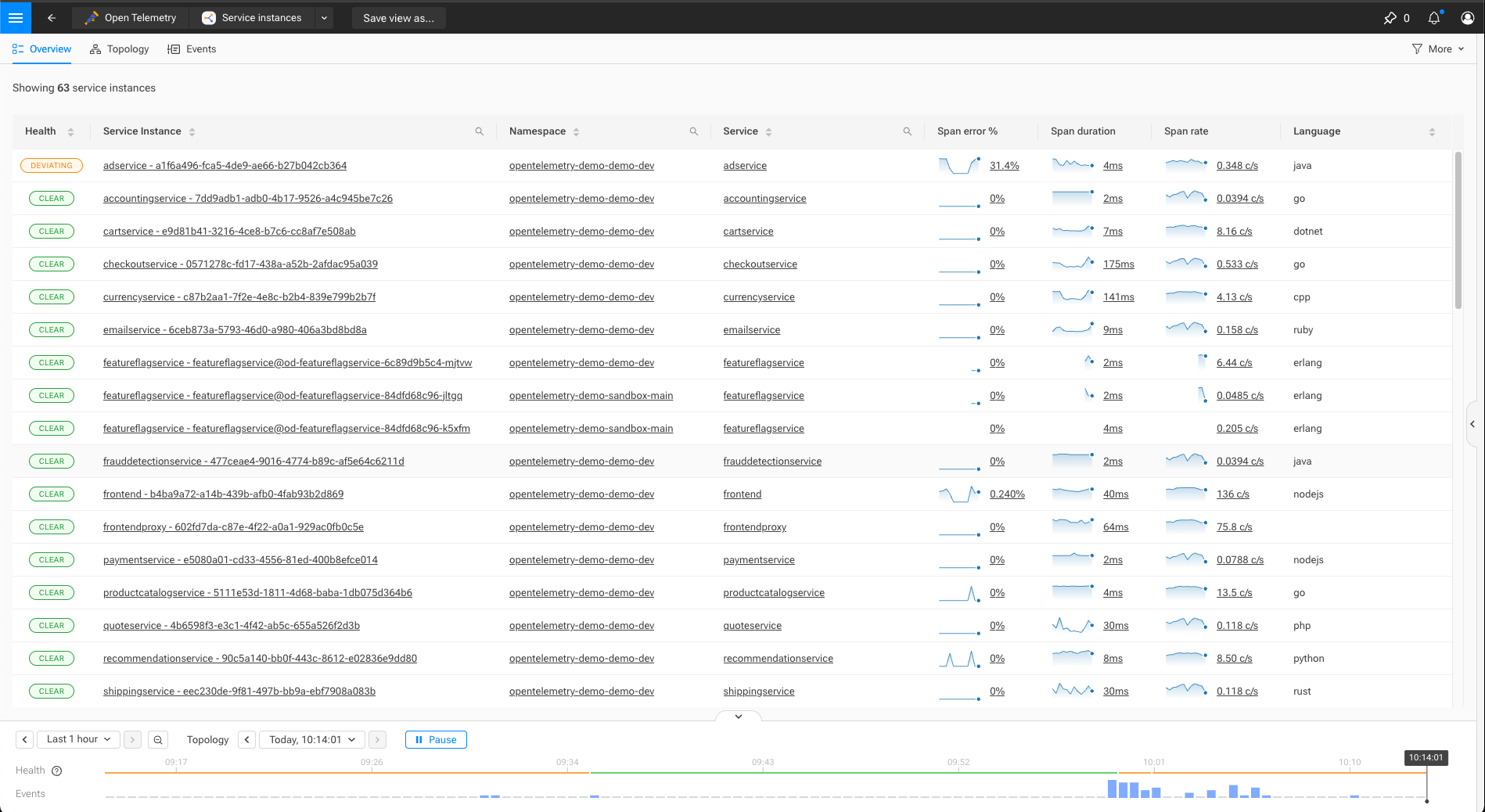

See the following screenshots to get an idea of which pages and UI elements on the respective pages the ComponentPresentation configuration pertains to.
ComponentPresentation
A ComponentPresentation defines how matching components are presented in the UI
for a given mode and context.
type: ComponentPresentation
identifier: urn:...:component-presentation:<presentation-name>
name: string
description: string # Optional description
binding:
query: string # Primitive STQL query that defines to which components does the presentation applies to
rank:
specificity: number # Higher values indicate more specific definitions
presentation:
icon: !icon path # Optional icon
overview: # Optional overview page configuration
name: # Naming configuration
plural: string
singular: string
title: string
mainMenu: # Optional main menu entry
group: string # Name of an existing MainMenuGroup
order: number # Order in the group - higher numbers come first
icon: !icon path # Optional reference to icon
fixedColumns: number # Optional number of columns that remain fixed when scrolling horizontally
columns:
- columnId: string # identifier for the column, to be aligned with more specific/generic presentations
title: string # Optional
projection: # Optional Projection
_type: string
... # Additional properties dependent on projection type
sort: # Optional default sort order
- columnId: string # References a column defined in `columns`
direction: string # Optional - Ascending (default) or Descending
highlight: # Optional highlight page configuration
title: string
fields:
- fieldId: string
title: string
description: string # Optional
order: number # Order in the about section - higher numbers come first
projection: # Optional Projection - when absent, a field defined in a more generic presentation is suppressed
_type: string
... # Additional properties dependent on projection type
relatedResources: # Optional - related resources to display
- resourceId: string # Stable identity key for merging
title: string # Section heading in the UI
order: number # Display order - higher numbers come first
topologyQuery: string # Optional - STQL query template with ${CEL_EXPRESSION} placeholders
presentationIdentifier: string # Optional - references a ComponentPresentation by identifier
links: # Optional - navigation links to display
- linkId: string # Stable identity key for merging
title: string-template # Optional display title; supports ${CEL_EXPRESSION} placeholders. Defaults to linkId after merging.
target: string-template # Optional relative or absolute URL; supports ${CEL_EXPRESSION} placeholders. Required after merging for an included link to resolve.
tooltip: string-template # Optional tooltip; supports ${CEL_EXPRESSION} placeholders
filter: cel:boolean # Optional visibility predicate
openInNewTab: boolean # Optional - default false
order: number # Optional display order - higher numbers come first
provisioning: # Optional section to specify how provisioning details are shown
topologySourceSelector: cel:boolean # Optional predicate to select the source component with provisioning details
showConfiguration: boolean # Optional - should provisioning configuration be accessible
showStatus: boolean # Optional - should provisioning status be accessible
events: # Optional section to configure events
showEvents: boolean # Should events be shown
relatedResourcesQuery: cel:string # Optional - topology query for components to include
excludeRelatedResourcesQuery: cel:string # Optional - topology query for components to exclude of events
metrics:
- sectionId: string
title: string
order: double
metrics:
- metricId: string
order: double
...
summary:
metrics:
- metricId: string
order: double
...
metricPerspective:
tabs:
- tabId: string
title: string
order: double
sections:
- sectionId: string
title: string
order: double
metrics:
- metricId: string
order: double
...
tracesPerspective: # Optional - makes the Traces perspective available
showTraces: boolean # Should the Traces perspective be shown
spanFilter: # Selects the spans shown in the perspective
serviceName: [string-template] # Optional - filter spans by service name
spanName: [string-template] # Optional - filter spans by name
attributes: # Optional - filter spans by one or more attributes
<attribute-key>: [string-template]
__multi__: ["${<cel-map-expression>}"] # Optional - expands a map into several attributes
spanKind: [Client | Consumer | Internal | Producer | Server | Unspecified] # Optional - filter spans by kind
spanParentType: [External | Internal | Root] # Optional - filter spans by parent type
statusCode: [Error | Ok | Unset] # Optional - filter spans by status code
durationFromNanos: integer # Optional - spans with duration >= value
durationToNanos: integer # Optional - spans with duration < value
scopeName: [string-template] # Optional - filter by instrumentation scope name
scopeVersion: [string-template] # Optional - filter by instrumentation scope version
filters: # Optional overview filters
- filterId: string
displayName: # Optional - name in the menu
singular: string
plural: string
menuSection: string # Optional - section for the menu item
filter: # Optional Filter
_type: string
...
metrics:
- metricId: string
name: string
description?: string
metricQueries:
- expression: string # promql query
alias: string # name in legend
componentIdentifierTemplate?: string # URN template for linking
primary?: boolean # is this query the primary one
chart?:
_type: 'TimeSeriesChart' | 'BarChart' | 'GaugeChart' | 'StatChart'
unit?: string
decimals?: integer
... # depends on chart typeIdentifier
Identifiers should follow the SUSE® Observability identifier (i.e., urn:…:<type>:<name>) format. Refer to identifiers documentation for more information.
Binding
The binding determines which components a ComponentPresentation applies to. Bindings are evaluated against component data and must be simple and efficient, as they are used during UI evaluation.
Currently supported binding type:
-
ComponentPresentationQueryBinding: a simple STQL query (refer to the STQL for more information). All field-based selectors (labels, layer, domain, identifiers, health state and name) are available, as is boolean logic to combine them. Only graph traversal (withNeighborsOf) is not allowed.
For overview pages, the set of ComponentPresentations that can contribute columns is determined on a query level. When there is a logical possibility for a component to match the overview query, but not the query for a particular ComponentPresentation, that presentation will not be considered.
Rank
The rank section controls how multiple matching ComponentPresentation definitions are combined.
It reflects how far down the resource hierarchy a presentation applies: from global/shared context to highly specific workload instances. Higher specificity values indicate more specialized definitions and take precedence over lower values when composing presentation behavior.
Values are user-defined but should generally increase as bindings become more specific along the resource hierarchy; the ranges below are guidelines, not enforced rules.
| Range | Use |
|---|---|
0 |
Universal base ( |
1–99 |
Environment & infrastructure (cloud, account, cluster) |
100–199 |
Platform & orchestration (k8s, otel base) |
200–299 |
Application / service |
300–399 |
Runtime / SDK / language |
400+ |
User / customer overrides |
Presentation sections
All fields under presentation are optional. A ComponentPresentation may define only a subset of presentation aspects.
Presentation sections are composed when multiple definitions apply to the same component.
Icon and name
Defines iconography and naming used across the UI. Icons can be included by using the !icon yaml tag, followed by the path of an icon relative to the icons/ folder.
E.g. !icon services/main-menu.svg can be used when the stackpack includes the file icons/services/main-menu.svg.
Traces perspective
The tracesPerspective section makes the Traces perspective available on the highlight page of matching components.
spanFilter selects which spans appear in the perspective. String-valued fields are string templates: text is taken literally, and any $\{…} placeholder is evaluated as a CEL expression against the component, using the same context as metric queries.
serviceName: ["orderService"] # literal value
spanName: ["${name}"] # the component name
attributes:
service.namespace: ["${tags.singleValue('service.namespace')}"]
http.route: ["/api/${tags.singleValue('version')}"] # literal text and a placeholder combined|
|
The special attribute key multi expands one CEL map expression into several span attributes at once, which is useful when the attribute keys are not known ahead of time. Its value must be a single $\{…} placeholder that evaluates to a map<string, string>; each entry of the map becomes one span attribute. Use selectPrefix to turn a set of related tags into attributes:
attributes:
__multi__: ["${selectPrefix(tags, 'otel.')}"] # tags otel.service, otel.version -> attributes service, versionBecause attribute keys must be unique, add a numeric suffix (multi1, multi2, and so on) when you need more than one such expansion in the same spanFilter. This is the same multi expansion used in metric queries, where the expansion is written as a plain multi label matcher with no suffix because PromQL matchers are a list rather than a map.
spanKind, spanParentType, statusCode and the two duration bounds are literal values and are not evaluated as expressions.
Resolution is best effort: a field whose expression fails to parse or evaluate is dropped from the filter and logged, while the remaining fields still apply.
When several ComponentPresentation definitions match a component, the whole tracesPerspective section is taken from the most specific one — it is not merged field by field. Set showTraces: false on a more specific presentation to suppress a Traces perspective that a less specific one enabled.
A TraceBinding setting matching the same component takes precedence over the tracesPerspective section.
